Bead Blasting Machine

product description

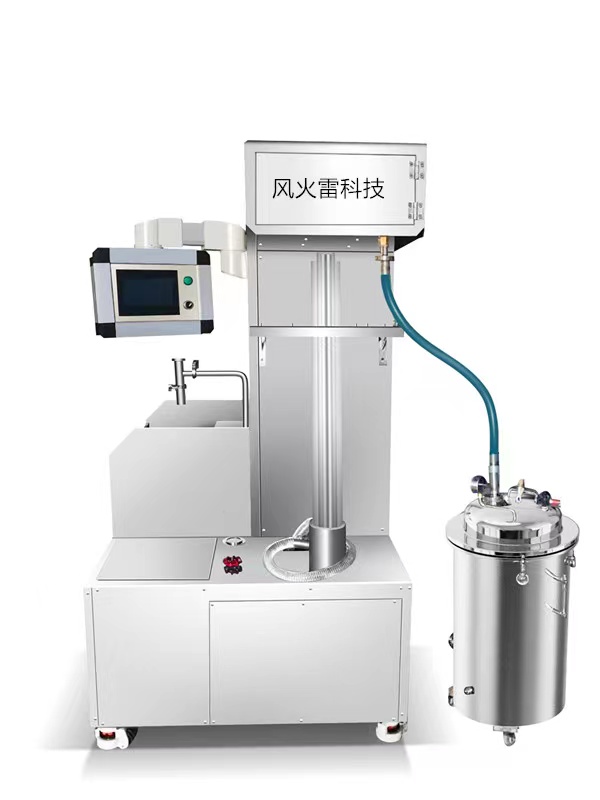

Pop beads are also called crispy capsules, fragrant pills, flavor capsules, and gel chewing gum. Usually the diameter is 2 to 4.8mm, which is a squeezable bead. The FHBZ-A automatic bead blasting machine is a model developed based on the characteristics of small diameter and fragility of the blasting bead, and it is carefully designed in accordance with the requirements of GMP. Using single-phase 220V power supply, it is composed of feeding system, batching system, drip system, cleaning system, heating system, cooling oil circulation system, electrical control system, drying system, etc. The machine uses a variety of automatic control technologies and is easy to operate. Stable performance and reliable work. The whole machine adopts optimized design, complete functions, compact structure, and is suitable for various industries such as medicine, food, biology, chemical industry, cosmetics, and health care products.



Innovative features:

●Independent innovation and advanced technology. The structure principle adopts the cone-center dripping technology.

●Large output, speed ≥1200 grains/min, 2.5 times that of ordinary products, normal output 18-25 grains/sec.

●High precision, the precision of diameter and filling quantity is controlled within ±0.1%.

●High yield. The yield rate is 99.9%, almost no pill inspection is required.

Process requirements

●Designed in accordance with GMP requirements, the frame guard plate is closed without gaps, easy to clean, and has no dead corners; the guard plate adopts hanging or other reasonable methods, which is convenient to disassemble and adjustable in level.

●The paraffin oil tray at the bottom is reasonable, which can prevent the paraffin from flowing to the ground.

●The design of the plastic tank and the material liquid tank is reasonable, the plastic tank and the material liquid tank have a cover, the switch is scientific, and the cleaning is convenient, and there is no leftover material at the end of the production stage.

                  ●All surfaces in contact with the product must be made of 316L or other non-metallic materials that do not affect the quality of the product, and the parts in contact with the material such as drip nozzles should be made of PEEK or more suitable for pharmaceutical production.

●Gaskets, sealing strips, O-rings, constant flow cups, etc. can only be made of food-grade polymer materials.

●Using man-machine interface for control, manual and automatic control modes can be implemented for all processes in the production process. Chinese interface, the interface design should have good maneuverability, using a touch screen, the interface can dynamically reflect the process parameters and statistical data of the production process. Such as: glue liquid, material liquid, dripper, coolant temperature, glue pump, core pump, cooling circulation pump speed, cooling column height, time, etc.

●When the material tank and glue tank are cleaned, the cleaning agent can be discharged from the dripper through the pump, and there is no dead corner in the material tank and glue tank.


technical parameter

●Using PLC automatic control system

●Capacity: 18-30 drops/sec

●Cooling system temperature range: 0-20℃

●Drip capacity: 10-60mg/drop adjustable

●Bead shell weight 9-60mg, accuracy ±0.1mg

●Emitter: the concentricity error of the inner hole and the glue hole does not exceed 0.1mm

●Glue tank: 30L volume, automatic glue supply, material 304 stainless steel

●Content tank: 40L in volume, automatic feeding, material 304 stainless steel

●Heating system: temperature control: 0-100℃ adjustable

●Dimensions: 1000*500*18500mm

●Weight: 230kg
