Dropping pill machine

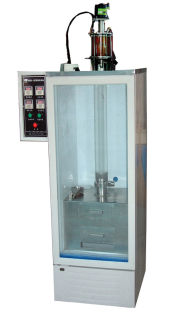

FHSY-II solid dropping pill machine

           product description:

The FHSY-II experimental dropping pill machine is small in size, manual operation, digital display, automatic temperature control, free parameter setting, convenient operation, intuitive work, and can produce 5-60 mg dropping pills. It is very suitable for teaching demonstrations and new drug development in universities and colleges. use.

The machine is equipped with a stepless speed-regulating agitator, a double-layer silicon-boron high-temperature resistant glass drip tank, the heat-conducting oil is heated by electricity, and the heat-conducting oil is used for heat preservation, and it is equipped with a dripper heating device. The dripping speed can be adjusted through the dripper switch, the cooling medium circulation system is set, the liquid level is adjustable, the pressure difference is used to eject the pills, and the pills are convenient. It is controlled during the dripping process. The entire dripping process is intuitive and easy to clean.

technical parameter:


Operating Voltage

220V

rated power

1kw

Dripper

One large dripper, a set of 6-hole dripper, dripper diameter 1-5mm

Drop pill weight

5-60mg

Drop tank volume

0.6L

Cooling volume

7.8L (56cm)

System air pressure

0.8MPa

weight

48kg

Dimensions

Length 600mm width 600mm height 1650mm
